Protecting the Spanning Tree Protocol Topology

ccnp-switching

Learn how BPDU Guard, BPDU Filter, Root Guard, Loop Guard, and UDLD protect the STP topology from rogue switches and unidirectional link failures.

Published

Nov 19, 2017

STP BPDUGuard

BPDU Guard is usually configured along with PortFast.

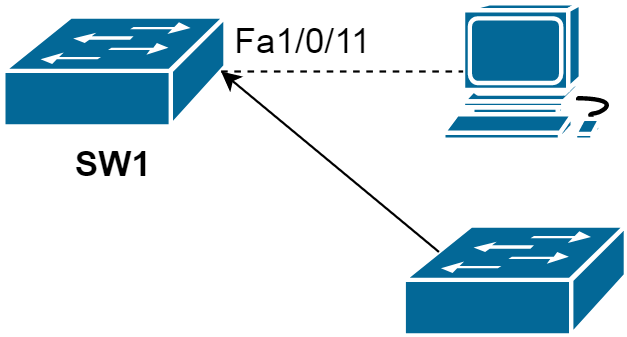

BPDU guard on a PortFast access port, which errdisables the port as soon as a switch is plugged in and sends a BPDU

On Fa1/0/11 we had a PC and the port was configured as a PortFast; now we are going to unplug the PC and connect a switch. The newly added switch will send BPDUs, but we do not want to receive the BPDUs on this port.

SW1(config-if)#spanning-tree bpduguard enable
*Mar  1 02:38:14.528: %SPANTREE-2-BLOCK_BPDUGUARD: Received BPDU on port Fa1/0/11 with BPDU Guard enabled. Disabling port.
*Mar  1 02:38:14.528: %PM-4-ERR_DISABLE: bpduguard error detected on Fa1/0/11, putting Fa1/0/11 in err-disable state

SW1#show interfaces status err-disabled

Port      Name               Status            Reason               Err-disabled Vlans
Fa1/0/11                     err-disabled  bpduguard

STP BPDUFilter

The spanning-tree BPDUfilter works similarly to BPDUGuard as it allows you to block malicious BPDUs. The difference is that BPDUguard will put the interface that it receives the BPDU on in err-disable mode while BPDUfilter just “filters” it. In this lesson we will take a good look at how BPDUfilter works.

BPDUfilter can be configured globally or on the interface level and there is a difference:

Global: if you enable BPDUfilter globally then any interface with portfast enabled will not send or receive any BPDUs. When you receive a BPDU on a portfast enabled interface then it will lose its portfast status, disables BPDU filtering and acts as a normal interface.
Interface: if you enable BPDUfilter on the interface it will ignore incoming BPDUs and it will not send any BPDUs. This is the equivalent of disabling spanning-tree.

You have to be careful when you enable BPDUfilter on interfaces. You can use it on interfaces in access mode that connect to computers but make sure you never configure it on interfaces connected to other switches; if you do you might end up with a loop.

Switch(config)#interface fa1/0/19
Switch(config-if)#spanning-tree portfast trunk
Switch(config-if)#spanning-tree bpdufilter enable

Or globally:

Switch(config)#spanning-tree portfast bpdufilter default

Personally I would not use this and use BPDUguard instead. If you do not expect BPDUs on an interface then it is better to get a notification (through err-disable) than not seeing what is going on.

STP Root Guard

RootGuard will make sure you do not accept a certain switch as a root bridge. BPDUs are sent and processed normally but if a switch suddenly sends a BPDU with a superior bridge ID you will not accept it as the root bridge.

The rootguard feature is implemented on a per interface basis with the spanning-tree guard root command, and the feature essentially prevents the interface from ever becoming a root port by placing the interface into root-inconsistent state upon receiving a superior BPDU. When the superior BPDU goes away, the port automatically transitions back to forwarding.

Configuration and verification example

Lab topology where Distribution_1 is the root bridge and the access switch reaches it over two uplinks

Distribution_1 is designated as the root bridge and this is what we want. We want to prevent the Access bridge becoming the root bridge when something like spanning-tree vlan 1 root primary is issued on the Access bridge. We enable spanning-tree guard root on the interfaces facing the Access bridge on both Distribution_1 and Distribution_2:

Distribution_1(config)#interface fastEthernet 1/0/23
Distribution_1(config-if)#spanning-tree guard root
*Mar  1 00:07:05.168: %SPANTREE-2-ROOTGUARD_CONFIG_CHANGE: Root guard enabled on port FastEthernet1/0/23.

Distribution_2(config)#interface fastEthernet 1/0/21
Distribution_2(config-if)#spanning-tree guard root
00:08:09: %SPANTREE-2-ROOTGUARD_CONFIG_CHANGE: Root guard enabled on port FastEthernet1/0/21.

Distribution_1#show spanning-tree interface fastEthernet 1/0/23 detail
 Port 25 (FastEthernet1/0/23) of VLAN0001 is broken  (Root Inconsistent)
   Port path cost 19, Port priority 128, Port Identifier 128.25.
   Designated root has priority 32769, address 001d.707b.4200
   Designated bridge has priority 32769, address 001d.707b.4200
   Designated port id is 128.25, designated path cost 0
   Timers: message age 2, forward delay 0, hold 0
   Number of transitions to forwarding state: 1
   Link type is point-to-point by default
   Root guard is enabled on the port
   BPDU: sent 2663, received 48

Before issuing spanning-tree vlan 1 root primary command on the Access switch, let us see the output of the show spanning-tree command

Access#show spanning-tree

VLAN0001
  Spanning tree enabled protocol ieee
  Root ID    Priority    32769
             Address     001d.707b.4200
             Cost        19
             Port        25 (FastEthernet1/0/23)
             Hello Time   2 sec  Max Age 20 sec  Forward Delay 15 sec

  Bridge ID  Priority    32769  (priority 32768 sys-id-ext 1)
             Address     0022.be5a.0680
             Hello Time   2 sec  Max Age 20 sec  Forward Delay 15 sec
             Aging Time 300

Interface        Role Sts Cost      Prio.Nbr Type
---------------- ---- --- --------- -------- --------------------------------
Fa1/0/21         Altn BLK 19        128.23   P2p
Fa1/0/23         Root FWD 19        128.25   P2p

Now, I issue spanning-tree vlan 1 root primary command on the Access switch and compare the output of the show spanning-tree command:

VLAN0001
  Spanning tree enabled protocol ieee
  Root ID    Priority    24577
             Address     0022.be5a.0680
             This bridge is the root
             Hello Time   2 sec  Max Age 20 sec  Forward Delay 15 sec

  Bridge ID  Priority    24577  (priority 24576 sys-id-ext 1)
             Address     0022.be5a.0680
             Hello Time   2 sec  Max Age 20 sec  Forward Delay 15 sec
             Aging Time 300

Interface        Role Sts Cost      Prio.Nbr Type
---------------- ---- --- --------- -------- --------------------------------
Fa1/0/21         Desg FWD 19        128.23   P2p
Fa1/0/23         Desg FWD 19        128.25   P2p

Now let us see the verification commands on Distribution bridges while Access switch is advertising itself as a root bridge.

Distribution_1#show spanning-tree inconsistentports

Name                 Interface                Inconsistency
-------------------- ------------------------ ------------------
VLAN0001             FastEthernet1/0/23       Root Inconsistent

Number of inconsistent ports (segments) in the system : 1

Distribution_2#show spanning-tree inconsistentports

Name                 Interface              Inconsistency
-------------------- ---------------------- ------------------
VLAN0001             FastEthernet1/0/21     Root Inconsistent

Number of inconsistent ports (segments) in the system : 1

Now I am going to suppress the superior BPDU by giving a higher priority to Access.

*Mar  1 01:27:42.601: %SPANTREE-2-ROOTGUARD_UNBLOCK: Root guard unblocking port FastEthernet1/0/23 on VLAN0001.

Loop Guard

If you ever used fiber cables you might have noticed that there is a different connector to transmit and receive traffic.

If one of the cables (transmit or receive) fails we will have a unidirectional link failure and this can cause spanning tree loops. There are two protocols that can take care of this problem:

LoopGuard
UDLD (Unidirectional Link Detection)

In STP, the blocked ports will remain in the Blocking state as long as a steady flow of BPDUs is received. If BPDUs are being sent over a link but the flow of BPDUs stops for some reason, the last-known BPDU is kept until the Max Age timer expires. Then that BPDU is flushed, and the switch thinks there is no longer a need to block the port. The switch then moves the port through the STP states until it begins to forward traffic and forms a bridging loop.

If a port enabled with loopguard stops hearing BPDUs from the designated port on the segment, instead of transitioning into forwarding, it goes into the loop-inconsistent state. When BPDUs are received on the port again, Loop Guard allows the port to move through the normal STP states and become active.

Configuration

To simulate BPDU transmit, I will use:

Switch(config)#interface fastEthernet 1/0/24
Switch(config-if)spanning-tree portfast trunk
Switch(config-if)#spanning-tree bpdufilter enable

If you are configuring this in a real network, you generally want it enabled on any port that is non-designated in your topology.

Distribution_2(config-if)#spanning-tree guard loop
Distribution_2#show spanning-tree interface fastEthernet 1/0/24 detail
 Port 26 (FastEthernet1/0/24) of VLAN0001 is forwarding
   Port path cost 19, Port priority 128, Port Identifier 128.26.
   Designated root has priority 32769, address 001d.707b.4200
   Designated bridge has priority 32769, address 001d.707b.4200
   Designated port id is 128.26, designated path cost 0
   Timers: message age 1, forward delay 0, hold 0
   Number of transitions to forwarding state: 2
   Link type is point-to-point by default
   Loop guard is enabled on the port
   BPDU: sent 48, received 2999

Unidirectional Link Detection (UDLD)

The other protocol we can use to deal with unidirectional link failures is called UDLD (UniDirectional Link Detection). This protocol is not part of the spanning tree toolkit but it does help us to prevent loops.

Simply said UDLD is a layer 2 protocol that works like a keepalive mechanism. You send hello messages, you receive them and life is good. As soon as you still send hello messages but do not receive them anymore you know something is wrong and we will block the interface.

Cisco proprietary
Unidirectional link usually occurs in fiber optic

To simulate unidirectional link failure is a tricky part here. LoopGuard was easier because it was based on BPDUs. UDLD runs its own layer 2 protocol by using the proprietary MAC address 0100.0ccc.cccc. We can create a filter to block the UDLD traffic:

Switch(config)#mac access-list extended UDLD-FILTER
Switch(config-ext-macl)#deny any host 0100.0ccc.cccc
Switch(config-ext-macl)#permit any any
Switch(config-ext-macl)#exit
Switch(config)#interface fa1/0/19
Switch(config-if)#mac access-group UDLD-FILTER in

Then a loop occurs. By default, UDLD is disabled on all switch ports. To enable it globally, use the following global configuration command:

Switch(config)#udld ?
  aggressive  Enable UDLD protocol in aggressive mode on fiber ports except where locally configured
  enable      Enable UDLD protocol on fiber ports except where locally configured
  message     Set UDLD message parameters

When you set UDLD to normal it will mark the port as undetermined but it will not shut the interface when something is wrong. This is only used to “inform” you but it will not stop loops.

Aggressive is a better solution. When it loses connectivity to a neighbor it will send a UDLD frame 8 times in a second. If the neighbor does not respond the interface will be put in err-disable mode.

You also can enable or disable UDLD on individual switch ports, if needed, using the following interface configuration command: Here, you can use the disable keyword to completely disable UDLD on a fiber-optic interface.

Switch(config-if)# udld { enable | aggressive | disable }

In order for UDLD to work we have to configure on both ends because UDLD is trying to establish a neighbor relationship with the other end.

To verify:

Switch#show udld fastEthernet 1/0/19

Switch#debug udld events

LoopGuard and UDLD both solve the same problem of unidirectional link failures. They have some overlap but there are a number of differences. Here is an overview:

	LoopGuard	UDLD
Configuration	Global / per port	Global (for fiber) / per port
Per VLAN?	Yes	No, per port
Autorecovery	Yes	Yes, requires err-disable timeout.
Protection against STP failures because of unidirectional link failures	Yes, need to enable it on all root and alternate ports	Yes, need to enable it on all interfaces
Protection against STP failures because no BPDUs are sent	Yes	No
Protection against miswiring	No	Yes
