vPC Configuration
ccie-data-center
Building a vPC domain step by step, covering peer keepalive, the peer link, consistency checking, and the member port-channels.
In this topic, we are going to proceed with basic vPC configuration on NX-OS. Let us review what we would need upfront before the configuration.
- We would need L3 connectivity for Peer Keepalive.
- For example, the management interface.
- We would require to enable vPC and LACP features.
- LACP must be used on all member interfaces as well as on the vPC peer-link.
- Then, create vPC domain.
- vPC switches use this ID to identify their peers.
- STP sees the vPC domain as a single switch.
- Configure peer-keepalive under vPC domain.
- Configure Port-Channel on vPC peer-link.
- Verify the consistency parameters.
!1. This configuration assumes you already have L3 connectivity over mgmt0 !2. Enable LACP and vPC features N9K01(config)# feature lacp N9K01(config)# feature vpc !3. Create vPC domain N9K01(config)# vpc domain 1 !4. Configure peer-keepalive under vPC domain N9K01(config-vpc-domain)# peer-keepalive destination 10.1.1.2 source 10.1.1.1 vrf management !5. Configure Port-Channel on vPC peer-link N9K01(config)# interface ethernet 1/1-2 N9K01(config-if-range)# switchport N9K01(config-if-range)# switchport mode trunk N9K01(config-if-range)# channel-group 1 mode active N9K01(config-if-range)# no shutdown N9K01(config-if-range)# interface port-channel 1 N9K01(config-if)# switchport N9K01(config-if)# switchport mode trunk N9K01(config-if)# vpc peer-link
vPC duplicate frame mechanism rule says, frame coming from vPC member port and going to the vPC peer switch through vPC peer link, cannot exit from a vPC member port on the peer switch.
vPC configuration Workshop

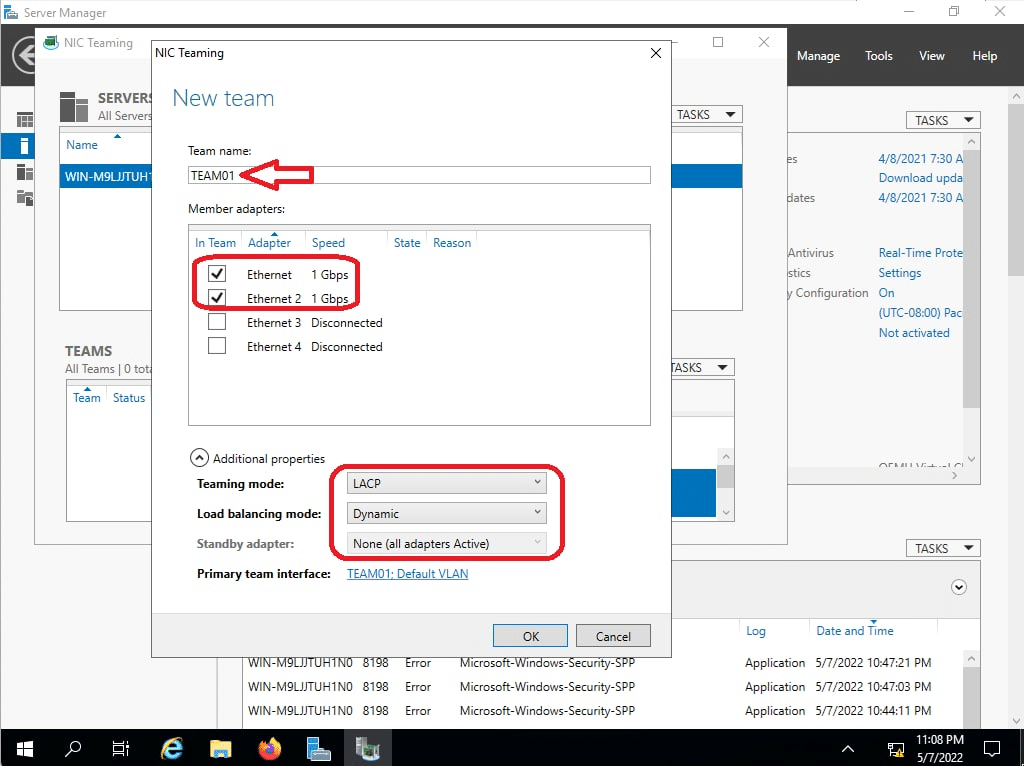

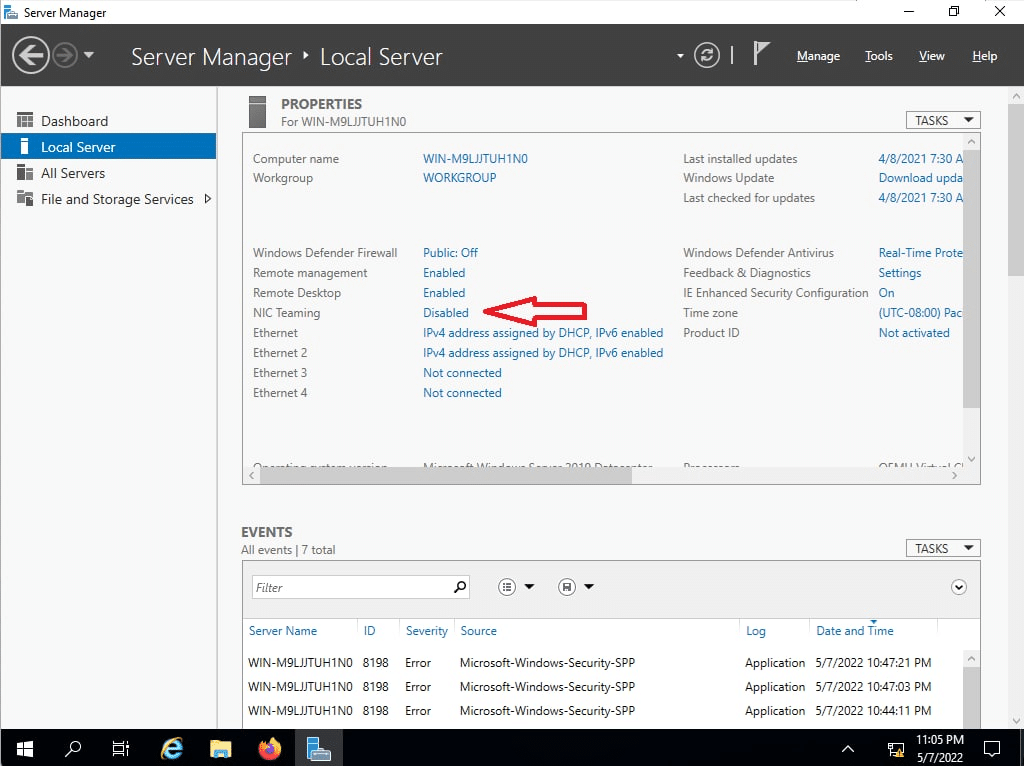

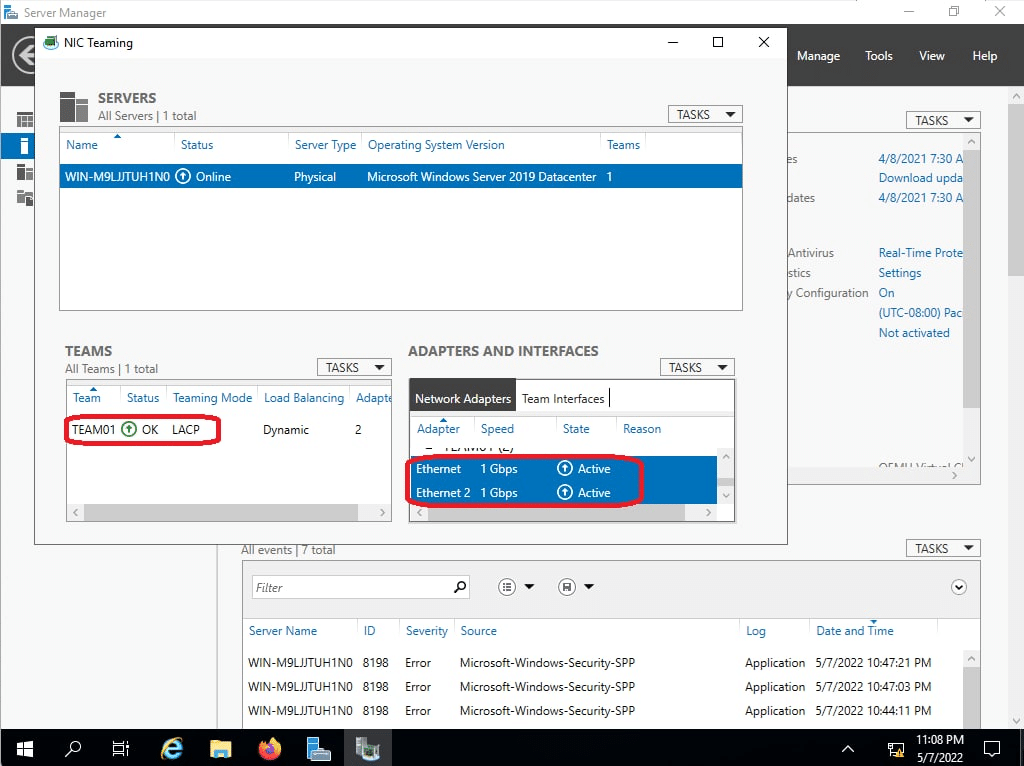

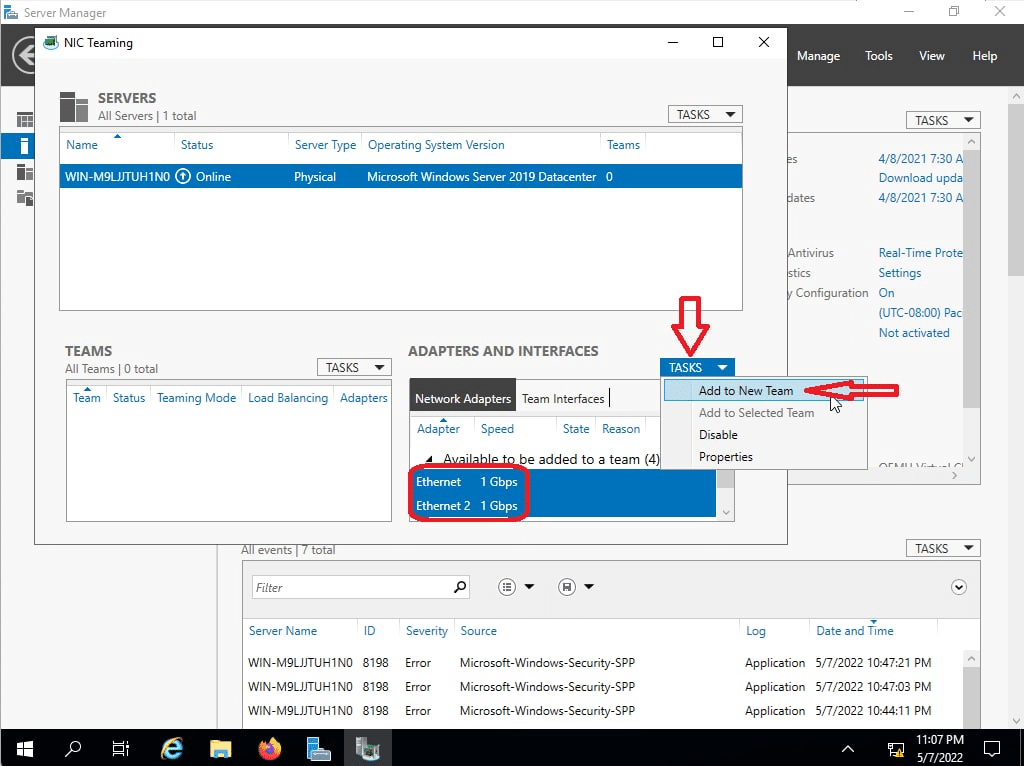

Next, we are going to multihome two servers to two different Nexus switches; then we will configure vPC on the Nexus as well as LACP NIC teaming on the servers:
vPC configuration
NX-OS01
feature lacp feature vpc vpc domain 1 interface ethernet 1/1-2 switchport switchport mode trunk channel-group 1 mode active no shutdown interface port-channel 1 switchport switchport mode trunk vpc peer-link interface mgmt 0 no shutdown ip address 10.1.1.1/24 vpc domain 1 peer-keepalive destination 10.1.1.2 source 10.1.1.1 vrf management exit interface ethernet 1/4 switchport no shutdown channel-group 4 mode active interface port-channel 4 switchport no shutdown vpc interface ethernet 1/5 switchport no shutdown channel-group 5 mode active interface port-channel 5 switchport no shutdown vpc
NX-OS01
feature lacp feature vpc vpc domain 1 interface ethernet 1/1-2 switchport switchport mode trunk channel-group 1 mode active no shutdown interface port-channel 1 switchport switchport mode trunk vpc peer-link interface mgmt 0 no shutdown ip address 10.1.1.2/24 vpc domain 1 peer-keepalive destination 10.1.1.1 source 10.1.1.2 vrf management exit interface ethernet 1/4 switchport no shutdown channel-group 4 mode active interface port-channel 4 switchport no shutdown vpc interface ethernet 1/5 switchport no shutdown channel-group 5 mode active interface port-channel 5 switchport no shutdown vpc
vPC Verification
In this section I am going to describe some important switch knife troubleshooting commands with vPC. I will be explaining the output of these verification commands in the next post.
N9K01# show vpc
Legend:
(*) - local vPC is down, forwarding via vPC peer-link
vPC domain id : 1
Peer status : peer adjacency formed ok
vPC keep-alive status : peer is alive
Configuration consistency status : success
Per-vlan consistency status : success
Type-2 consistency status : success
vPC role : primary
Number of vPCs configured : 2
Peer Gateway : Disabled
Dual-active excluded VLANs : -
Graceful Consistency Check : Enabled
Auto-recovery status : Disabled
Delay-restore status : Timer is off.(timeout = 30s)
Delay-restore SVI status : Timer is off.(timeout = 10s)
Delay-restore Orphan-port status : Timer is off.(timeout = 0s)
Operational Layer3 Peer-router : Disabled
Virtual-peerlink mode : Disabled
vPC Peer-link status
---------------------------------------------------------------------
id Port Status Active vlans
-- ---- ------ -------------------------------------------------
1 Po1 up 1
vPC status
----------------------------------------------------------------------------
Id Port Status Consistency Reason Active vlans
-- ------------ ------ ----------- ------ ---------------
4 Po4 up success success 1
5 Po5 up success success 1
Please check "show vpc consistency-parameters vpc <vpc-num>" for the
consistency reason of down vpc and for type-2 consistency reasons for
any vpc.
N9K01# show vpc consistency-parameters global
Legend:
Type 1 : vPC will be suspended in case of mismatch
Name Type Local Value Peer Value
------------- ---- ---------------------- -----------------------
STP MST Simulate PVST 1 Enabled Enabled
STP Port Type, Edge 1 Normal, Disabled, Normal, Disabled,
BPDUFilter, Edge BPDUGuard Disabled Disabled
STP MST Region Name 1 "" ""
STP Disabled 1 None None
STP Mode 1 Rapid-PVST Rapid-PVST
STP Bridge Assurance 1 Enabled Enabled
STP Loopguard 1 Disabled Disabled
STP MST Region Instance to 1
VLAN Mapping
STP MST Region Revision 1 0 0
Xconnect Vlans 1
QoS (Cos) 2 ([0-7], [], [], [], ([0-7], [], [], [],
[], [], [], []) [], [], [], [])
Network QoS (MTU) 2 (1500, 1500, 1500, (1500, 1500, 1500,
1500, 0, 0, 0, 0) 1500, 0, 0, 0, 0)
Network Qos (Pause: 2 (F, F, F, F, F, F, F, (F, F, F, F, F, F, F,
T->Enabled, F->Disabled) F) F)
Input Queuing (Bandwidth) 2 (0, 0, 0, 0, 0, 0, 0, (0, 0, 0, 0, 0, 0, 0,
0) 0)
Input Queuing (Absolute 2 (F, F, F, F, F, F, F, (F, F, F, F, F, F, F,
Priority: T->Enabled, F) F)
F->Disabled)
Output Queuing (Bandwidth 2 (100, 0, 0, 0, 0, 0, (100, 0, 0, 0, 0, 0,
Remaining) 0, 0) 0, 0)
Output Queuing (Absolute 2 (F, F, F, T, F, F, F, (F, F, F, T, F, F, F,
Priority: T->Enabled, F) F)
F->Disabled)
Allowed VLANs - 1 1
Local suspended VLANs - - -
