VXLAN Fabric Multicast with MP-BGP as Control Plane
ccie-data-center
Running a BGP EVPN control plane over a multicast underlay, with PIM anycast RP on the spines carrying multi-destination traffic.
In this section, we are going to discuss MP-BGP VXLAN with PIM to handle multi-destination traffic. So, your complete bipartite graph must support PIM. This is why in this post, we happened to choose loopback 254 on the spines for our PIM Anycast RP.
VTEP V1 then sends out the packet toward the IP core. The multicast tree forwards the packet until it reaches all interested receivers.
VTEP V3 receives and then de-encapsulates the VXLAN packet; because VTEP V3 has VNI 20100 and is part of subscribers for Multicast Group 239.1.1.2.
VXLAN with BGP EVPN Configuration Overview
In this scenario, multidestination traffic is handled using PIM. In order to use BGP EVPN as the control plane, you need nv overlay evpn global configuration.
MP-BGP is known for its scalability, multitenancy, and routing policy capabilities. BGP EVPN address family (address-family l2vpn evpn) carries the MAC, IP, Network, VRF, and VTEP information of the hosts. Once a VTEP leans about a host behind it, BGP EVPN distributes this information to all other BGP EVPN neighbours. We have already discussed MP-BGP in this post. But I am going to give a brief summary in our BGP EVPN context.
Route Distinguisher helps us differentiate between different routes stored in MP-BGP table. For separation and path efficiency, use a unique RD on a per-VRF, per- router basis.
Route Target - which happens to have a similar notation as RD - associates with a particular route which then allows that route placed in the VRF which imports that route.
- Export route-target: what routes will go from VRF into BGP
- Import route-target: what routes will go from BGP into VRF
NX-OS provides automated derivation of RDs and RTs for simplification. The snippet below is an example of the configuration in one of the spines followed by an example on one of the leafs.
SPIN01(config)# nv overlay evpn ! Enables EVPN Control Plane in BGP SPIN01(config)# feature bgp SPIN01(config)# feature pim SPIN01(config)# feature isis SPIN01(config)# ip pim rp-address 192.168.0.254 group-list 224.0.0.0/4 SPIN01(config)# ip pim anycast-rp 192.168.0.254 192.168.0.1 SPIN01(config)# ip pim anycast-rp 192.168.0.254 192.168.0.2 SPIN01(config)# interface Ethernet1/1-4 SPIN01(config-if-range)# description FABRIC SPIN01(config-if-range)# medium p2p SPIN01(config-if-range)# ip unnumbered loopback0 SPIN01(config-if-range)# ip router isis UNDERLAY SPIN01(config-if-range)# ip pim sparse-mode SPIN01(config-if-range)# no shutdown SPIN01(config-if-range)# exit SPIN01(config)# interface loopback0 SPIN01(config-if)# ip address 192.168.0.1/32 SPIN01(config-if)# ip router isis UNDERLAY SPIN01(config-if)# ip pim sparse-mode SPIN01(config-if)# exit SPIN01(config)# interface loopback254 SPIN01(config-if)# ip address 192.168.0.254/32 SPIN01(config-if)# ip router isis UNDERLAY SPIN01(config-if)# ip pim sparse-mode SPIN01(config-if)# exit SPIN01(config)# router isis UNDERLAY SPIN01(config-router)# net 49.0000.0000.0001.00 SPIN01(config-router)# is-type level-2 SPIN01(config-router)# exit SPIN01(config)# router bgp 65000 SPIN01(config-router)# template peer-policy RR_PEER_POLICY SPIN01(config-router-ptmp)# send-community extended SPIN01(config-router-ptmp)# route-reflector-client SPIN01(config-router-ptmp)# template peer-session RR_PEER_SESSION SPIN01(config-router-stmp)# remote-as 65000 SPIN01(config-router-stmp)# update-source loopback0 SPIN01(config-router-stmp)# neighbor 192.168.1.1 SPIN01(config-router-neighbor)# inherit peer-session RR_PEER_SESSION SPIN01(config-router-neighbor)# address-family l2vpn evpn SPIN01(config-router-neighbor-af)# inherit peer-policy RR_PEER_POLICY 1 SPIN01(config-router-neighbor-af)# neighbor 192.168.1.2 SPIN01(config-router-neighbor)# inherit peer-session RR_PEER_SESSION SPIN01(config-router-neighbor)# address-family l2vpn evpn SPIN01(config-router-neighbor-af)# inherit peer-policy RR_PEER_POLICY 1 SPIN01(config-router-neighbor-af)# neighbor 192.168.1.3 SPIN01(config-router-neighbor)# inherit peer-session RR_PEER_SESSION SPIN01(config-router-neighbor)# address-family l2vpn evpn SPIN01(config-router-neighbor-af)# inherit peer-policy RR_PEER_POLICY 1 SPIN01(config-router-neighbor-af)# neighbor 192.168.1.4 SPIN01(config-router-neighbor)# inherit peer-session RR_PEER_SESSION SPIN01(config-router-neighbor)# address-family l2vpn evpn SPIN01(config-router-neighbor-af)# inherit peer-policy RR_PEER_POLICY 1
LEAF01(config)# nv overlay evpn LEAF01(config)# feature bgp LEAF01(config)# feature pim LEAF01(config)# feature isis LEAF01(config)# feature vn-segment-vlan-based LEAF01(config)# feature nv overlay ! Enables VTEP (Only required on leaf) LEAF01(config)# ip pim rp-address 192.168.0.254 group-list 224.0.0.0/4 LEAF01(config)# vlan 100 LEAF01(config-vlan)# vn-segment 20100 LEAF01(config-vlan)# vlan 200 LEAF01(config-vlan)# vn-segment 20200 LEAF01(config-vlan)# exit LEAF01(config)# interface nve1 LEAF01(config-if-nve)# no shutdown LEAF01(config-if-nve)# host-reachability protocol bgp LEAF01(config-if-nve)# source-interface loopback1 LEAF01(config-if-nve)# member vni 20100 LEAF01(config-if-nve-vni)# mcast-group 239.1.1.100 LEAF01(config-if-nve-vni)# member vni 20200 LEAF01(config-if-nve-vni)# mcast-group 239.1.1.200 LEAF01(config-if-nve-vni)# exit LEAF01(config-if-nve)# interface Ethernet1/1-2 LEAF01(config-if-range)# description FABRIC LEAF01(config-if-range)# no switchport LEAF01(config-if-range)# medium p2p LEAF01(config-if-range)# ip unnumbered loopback0 LEAF01(config-if-range)# ip router isis UNDERLAY LEAF01(config-if-range)# ip pim sparse-mode LEAF01(config-if-range)# no shutdown LEAF01(config-if-range)# exit LEAF01(config)# interface Ethernet1/41 LEAF01(config-if)# switchport access vlan 100 LEAF01(config-if)# spanning-tree port type edge LEAF01(config-if)# interface loopback0 LEAF01(config-if)# ip address 192.168.1.1/32 LEAF01(config-if)# ip router isis UNDERLAY LEAF01(config-if)# ip pim sparse-mode LEAF01(config-if)# interface loopback1 LEAF01(config-if)# description NVE LEAF01(config-if)# ip address 192.168.250.1/32 LEAF01(config-if)# ip router isis UNDERLAY LEAF01(config-if)# ip pim sparse-mode LEAF01(config-if)# exit LEAF01(config)# router isis UNDERLAY LEAF01(config-router)# net 49.0000.0000.1001.00 LEAF01(config-router)# is-type level-2 LEAF01(config-router)# router bgp 65000 LEAF01(config-router)# template peer-policy RR_PEER_POLICY LEAF01(config-router-ptmp)# send-community extended LEAF01(config-router-ptmp)# neighbor 192.168.0.1 LEAF01(config-router-neighbor)# remote-as 65000 LEAF01(config-router-neighbor)# update-source loopback0 LEAF01(config-router-neighbor)# address-family l2vpn evpn LEAF01(config-router-neighbor-af)# send-community extended LEAF01(config-router-neighbor-af)# neighbor 192.168.0.2 LEAF01(config-router-neighbor)# remote-as 65000 LEAF01(config-router-neighbor)# update-source loopback0 LEAF01(config-router-neighbor)# address-family l2vpn evpn LEAF01(config-router-neighbor-af)# send-community extended LEAF01(config)# evpn LEAF01(config-evpn)# vni 20100 l2 LEAF01(config-evpn-evi)# rd auto LEAF01(config-evpn-evi)# route-target import auto LEAF01(config-evpn-evi)# route-target export auto LEAF01(config-evpn-evi)# vni 20200 l2 LEAF01(config-evpn-evi)# rd auto LEAF01(config-evpn-evi)# route-target import auto LEAF01(config-evpn-evi)# route-target export auto
Workshop

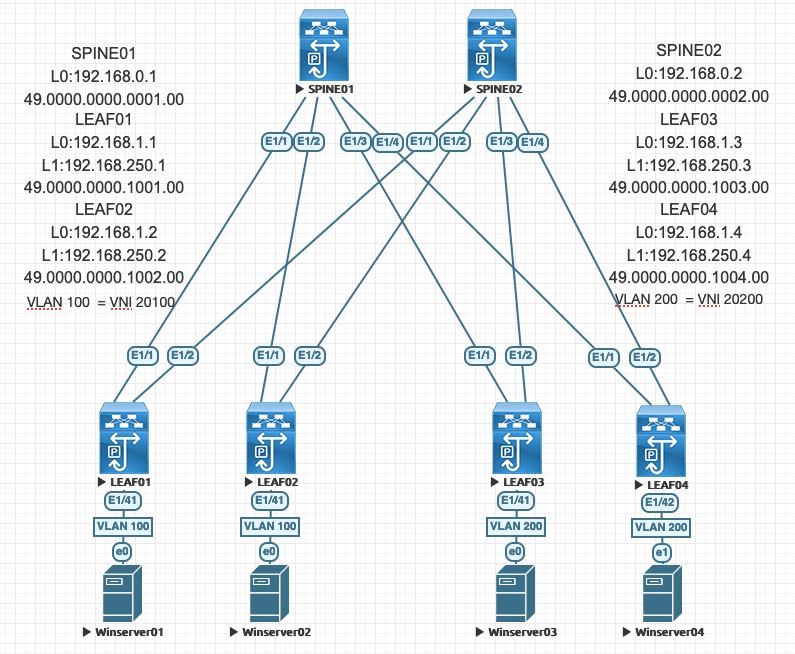

In this scenario, we will elaborate and modify our first lab in the previous post to work with VXLAN Flood and Learn as well as with multicast instead of Ingress Replication to handle BUM traffic. In this scenario, IS-IS is configured for underlay:
SPINE01
nv overlay evpn
feature bgp
feature pim
feature isis
ip pim rp-address 192.168.0.254
ip pim anycast-rp 192.168.0.254 192.168.0.1
ip pim anycast-rp 192.168.0.254 192.168.0.2
interface Ethernet1/1
description FABRIC
medium p2p
ip unnumbered loopback0
ip router isis UNDERLAY
ip pim sparse-mode
no shutdown
interface Ethernet1/2
description FABRIC
medium p2p
ip unnumbered loopback0
ip router isis UNDERLAY
ip pim sparse-mode
no shutdown
interface Ethernet1/3
description FABRIC
medium p2p
ip unnumbered loopback0
ip router isis UNDERLAY
ip pim sparse-mode
no shutdown
interface Ethernet1/4
description FABRIC
medium p2p
ip unnumbered loopback0
ip router isis UNDERLAY
ip pim sparse-mode
no shutdown
interface loopback0
ip address 192.168.0.1/32
ip router isis UNDERLAY
ip pim sparse-mode
interface loopback254
ip address 192.168.0.254/32
ip router isis UNDERLAY
ip pim sparse-mode
router isis UNDERLAY
net 49.0000.0000.0001.00
is-type level-2
router bgp 65000
template peer-policy RR_PEER_POLICY
send-community extended
route-reflector-client
template peer-session RR_PEER_SESSION
remote-as 65000
update-source loopback0
neighbor 192.168.1.1
inherit peer-session RR_PEER_SESSION
address-family l2vpn evpn
inherit peer-policy RR_PEER_POLICY 1
neighbor 192.168.1.2
inherit peer-session RR_PEER_SESSION
address-family l2vpn evpn
inherit peer-policy RR_PEER_POLICY 1
neighbor 192.168.1.3
inherit peer-session RR_PEER_SESSION
address-family l2vpn evpn
inherit peer-policy RR_PEER_POLICY 1
neighbor 192.168.1.4
inherit peer-session RR_PEER_SESSION
address-family l2vpn evpn
inherit peer-policy RR_PEER_POLICY 1
SPINE02
feature pim feature isis ip pim rp-address 192.168.0.254 ip pim anycast-rp 192.168.0.254 192.168.0.1 ip pim anycast-rp 192.168.0.254 192.168.0.2 interface Ethernet1/1 description FABRIC medium p2p ip unnumbered loopback0 ip router isis UNDERLAY ip pim sparse-mode no shutdown interface Ethernet1/2 description FABRIC medium p2p ip unnumbered loopback0 ip router isis UNDERLAY ip pim sparse-mode no shutdown interface Ethernet1/3 description FABRIC medium p2p ip unnumbered loopback0 ip router isis UNDERLAY ip pim sparse-mode no shutdown interface Ethernet1/4 description FABRIC medium p2p ip unnumbered loopback0 ip router isis UNDERLAY ip pim sparse-mode no shutdown interface loopback0 description UNDERLAY ip address 192.168.0.2/32 ip router isis UNDERLAY ip pim sparse-mode interface loopback254 ip address 192.168.0.254/32 ip router isis UNDERLAY ip pim sparse-mode icam monitor scale line console line vty router isis UNDERLAY net 49.0000.0000.0002.00 is-type level-2
SPINE02
nv overlay evpn
feature bgp
feature pim
feature isis
ip pim rp-address 192.168.0.254
ip pim anycast-rp 192.168.0.254 192.168.0.1
ip pim anycast-rp 192.168.0.254 192.168.0.2
interface Ethernet1/1
description FABRIC
medium p2p
ip unnumbered loopback0
ip router isis UNDERLAY
ip pim sparse-mode
no shutdown
interface Ethernet1/2
description FABRIC
medium p2p
ip unnumbered loopback0
ip router isis UNDERLAY
ip pim sparse-mode
no shutdown
interface Ethernet1/3
description FABRIC
medium p2p
ip unnumbered loopback0
ip router isis UNDERLAY
ip pim sparse-mode
no shutdown
interface Ethernet1/4
description FABRIC
medium p2p
ip unnumbered loopback0
ip router isis UNDERLAY
ip pim sparse-mode
no shutdown
interface loopback0
ip address 192.168.0.2/32
ip router isis UNDERLAY
ip pim sparse-mode
interface loopback254
ip address 192.168.0.254/32
ip router isis UNDERLAY
ip pim sparse-mode
router isis UNDERLAY
net 49.0000.0000.0002.00
is-type level-2
router bgp 65000
template peer-policy RR_PEER_POLICY
send-community extended
route-reflector-client
template peer-session RR_PEER_SESSION
remote-as 65000
update-source loopback0
neighbor 192.168.1.1
inherit peer-session RR_PEER_SESSION
address-family l2vpn evpn
inherit peer-policy RR_PEER_POLICY 1
neighbor 192.168.1.2
inherit peer-session RR_PEER_SESSION
address-family l2vpn evpn
inherit peer-policy RR_PEER_POLICY 1
neighbor 192.168.1.3
inherit peer-session RR_PEER_SESSION
address-family l2vpn evpn
inherit peer-policy RR_PEER_POLICY 1
neighbor 192.168.1.4
inherit peer-session RR_PEER_SESSION
address-family l2vpn evpn
inherit peer-policy RR_PEER_POLICY 1
LEAF01
nv overlay evpn
feature bgp
feature pim
feature isis
feature vn-segment-vlan-based
feature nv overlay
ip pim rp-address 192.168.0.254
vlan 100
vn-segment 20100
vlan 200
vn-segment 20200
interface nve1
no shutdown
host-reachability protocol bgp
source-interface loopback1
member vni 20100
mcast-group 239.1.1.100
member vni 20200
mcast-group 239.1.1.200
interface Ethernet1/1
description FABRIC
no switchport
medium p2p
ip unnumbered loopback0
ip router isis UNDERLAY
ip pim sparse-mode
no shutdown
interface Ethernet1/2
description FABRIC
no switchport
medium p2p
ip unnumbered loopback0
ip router isis UNDERLAY
ip pim sparse-mode
no shutdown
interface Ethernet1/41
switchport access vlan 100
spanning-tree port type edge
interface loopback0
ip address 192.168.1.1/32
ip router isis UNDERLAY
ip pim sparse-mode
interface loopback1
description NVE
ip address 192.168.250.1/32
ip router isis UNDERLAY
ip pim sparse-mode
router isis UNDERLAY
net 49.0000.0000.1001.00
is-type level-2
router bgp 65000
template peer-policy RR_PEER_POLICY
send-community extended
neighbor 192.168.0.1
remote-as 65000
update-source loopback0
address-family l2vpn evpn
send-community extended
neighbor 192.168.0.2
remote-as 65000
update-source loopback0
address-family l2vpn evpn
send-community extended
evpn
vni 20100 l2
rd auto
route-target import auto
route-target export auto
vni 20200 l2
rd auto
route-target import auto
route-target export auto
LEAF02
nv overlay evpn
feature bgp
feature pim
feature isis
feature vn-segment-vlan-based
feature nv overlay
ip pim rp-address 192.168.0.254
vlan 100
vn-segment 20100
vlan 200
vn-segment 20200
interface nve1
no shutdown
host-reachability protocol bgp
source-interface loopback1
member vni 20100
mcast-group 239.1.1.100
member vni 20200
mcast-group 239.1.1.200
interface Ethernet1/1
description FABRIC
no switchport
medium p2p
ip unnumbered loopback0
ip router isis UNDERLAY
ip pim sparse-mode
no shutdown
interface Ethernet1/2
description FABRIC
no switchport
medium p2p
ip unnumbered loopback0
ip router isis UNDERLAY
ip pim sparse-mode
no shutdown
interface Ethernet1/41
switchport access vlan 100
spanning-tree port type edge
interface loopback0
ip address 192.168.1.2/32
ip router isis UNDERLAY
ip pim sparse-mode
interface loopback1
description NVE
ip address 192.168.250.2/32
ip router isis UNDERLAY
ip pim sparse-mode
router isis UNDERLAY
net 49.0000.0000.1002.00
is-type level-2
router bgp 65000
template peer-policy RR_PEER_POLICY
send-community extended
neighbor 192.168.0.1
remote-as 65000
update-source loopback0
address-family l2vpn evpn
send-community extended
neighbor 192.168.0.2
remote-as 65000
update-source loopback0
address-family l2vpn evpn
send-community extended
evpn
vni 20100 l2
rd auto
route-target import auto
route-target export auto
vni 20200 l2
rd auto
route-target import auto
route-target export auto
LEAF03
nv overlay evpn
feature bgp
feature pim
feature isis
feature vn-segment-vlan-based
feature nv overlay
ip pim rp-address 192.168.0.254
vlan 100
vn-segment 20100
vlan 200
vn-segment 20200
interface nve1
no shutdown
host-reachability protocol bgp
source-interface loopback1
member vni 20100
mcast-group 239.1.1.100
member vni 20200
mcast-group 239.1.1.200
interface Ethernet1/1
description FABRIC
no switchport
medium p2p
ip unnumbered loopback0
ip router isis UNDERLAY
ip pim sparse-mode
no shutdown
interface Ethernet1/2
description FABRIC
no switchport
medium p2p
ip unnumbered loopback0
ip router isis UNDERLAY
ip pim sparse-mode
no shutdown
interface Ethernet1/41
switchport access vlan 200
spanning-tree port type edge
interface loopback0
ip address 192.168.1.3/32
ip router isis UNDERLAY
ip pim sparse-mode
interface loopback1
description NVE
ip address 192.168.250.3/32
ip router isis UNDERLAY
ip pim sparse-mode
router isis UNDERLAY
net 49.0000.0000.1003.00
is-type level-2
router bgp 65000
template peer-policy RR_PEER_POLICY
send-community extended
neighbor 192.168.0.1
remote-as 65000
update-source loopback0
address-family l2vpn evpn
send-community extended
neighbor 192.168.0.2
remote-as 65000
update-source loopback0
address-family l2vpn evpn
send-community extended
evpn
vni 20100 l2
rd auto
route-target import auto
route-target export auto
vni 20200 l2
rd auto
route-target import auto
route-target export auto
LEAF04
nv overlay evpn
feature bgp
feature pim
feature isis
feature vn-segment-vlan-based
feature nv overlay
ip pim rp-address 192.168.0.254
vlan 100
vn-segment 20100
vlan 200
vn-segment 20200
interface nve1
no shutdown
host-reachability protocol bgp
source-interface loopback1
member vni 20100
mcast-group 239.1.1.100
member vni 20200
mcast-group 239.1.1.200
interface Ethernet1/1
description FABRIC
no switchport
medium p2p
ip unnumbered loopback0
ip router isis UNDERLAY
ip pim sparse-mode
no shutdown
interface Ethernet1/2
description FABRIC
no switchport
medium p2p
ip unnumbered loopback0
ip router isis UNDERLAY
ip pim sparse-mode
no shutdown
interface Ethernet1/41
switchport access vlan 200
spanning-tree port type edge
interface loopback0
ip address 192.168.1.4/32
ip router isis UNDERLAY
ip pim sparse-mode
interface loopback1
description NVE
ip address 192.168.250.4/32
ip router isis UNDERLAY
ip pim sparse-mode
router isis UNDERLAY
net 49.0000.0000.1004.00
is-type level-2
router bgp 65000
template peer-policy RR_PEER_POLICY
send-community extended
neighbor 192.168.0.1
remote-as 65000
update-source loopback0
address-family l2vpn evpn
send-community extended
neighbor 192.168.0.2
remote-as 65000
update-source loopback0
address-family l2vpn evpn
send-community extended
evpn
vni 20100 l2
rd auto
route-target import auto
route-target export auto
vni 20200 l2
rd auto
route-target import auto
route-target export auto
