Multiple Spanning Tree Protocol (IEEE 802.1s)
Brief Introduction to MST
IEEE 802.1s originally started as Cisco’s Multiple Instances Spanning Tree Protocol (MISTP). Remember that RapidPVST+ each VLAN is mapped to a single spanning tree instance. When you have 200 VLANs, it means there are 200 instances of spanning tree. This requires a lot of CPU power and memory. You can put multiple VLANs together in something called an instance. The end result is that you would have fewer instances of spanning-tree which results in a higher scalability. MST (802.1s) relies on RSTP (802.1W).
How IEEE 802.1s (MST) Works
In order to improve the convergence time of STP (or CST), IEEE released IEEE 802.1w standard. With this
With MST, the topology calculation is done by RSTP. MST works by decoupling VLANs and STP Instances. The network administrator will define the VLAN to instance mapping. By default, all VLANs belong to default MST0 (AKA Common Internal Spanning Tree or CIST or IST). When two switches have the same instance-to-VLAN mapping database, the same instance name, and then same instance revision number, we say that they are in the same region.
When two switches are in the same MST region (intra-region), they know the detail of their region as a result MST forms within the region. Undefined VLANs fall into MST0

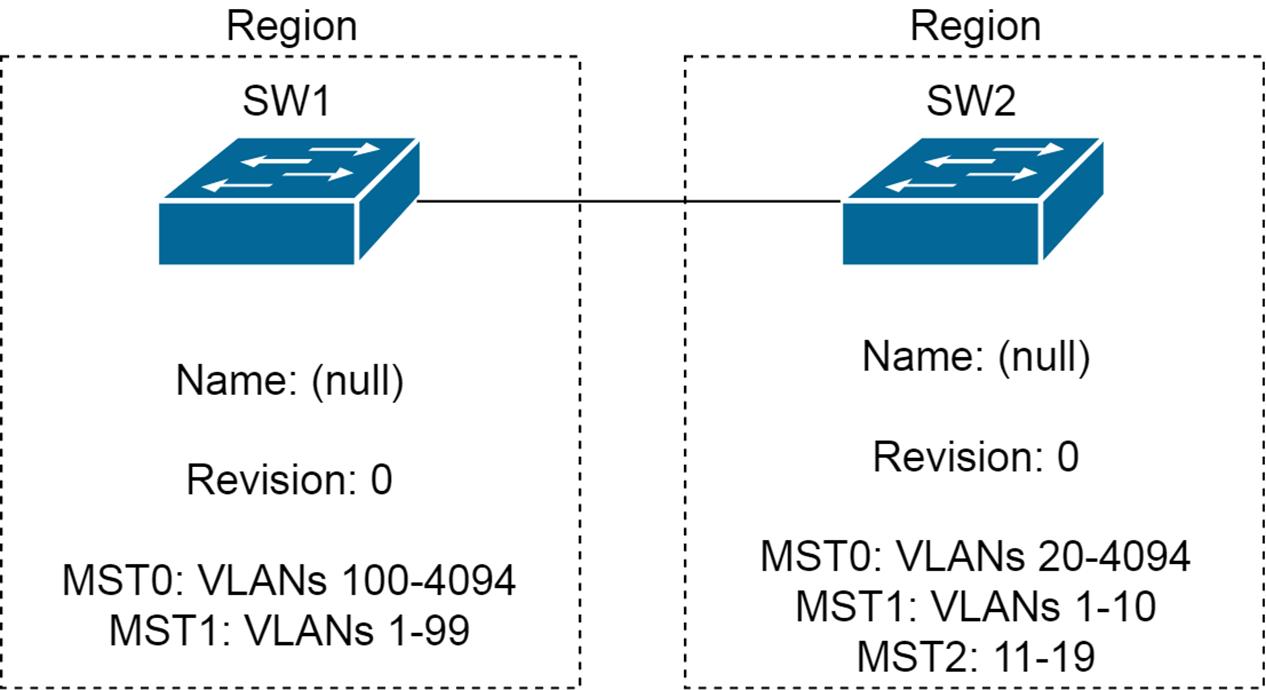

When two switches are in different regions (inter-region), they do not have the details of the other region. The two regions see each other as virtual bridges. The result is that they run RSTP for inter-region calculation. Intra-region MST Instances are collapsed into MST0.
MST and CST Inter-Operation
From inside MST you might have different topologies based on which ports are in forwarding mode and which ports are alternate. This is what you see in the middle to top of the image below
From CST point of view, the MST region looks like a single switch. This is what you see in the middle and bottom of the image below
MST Configuration

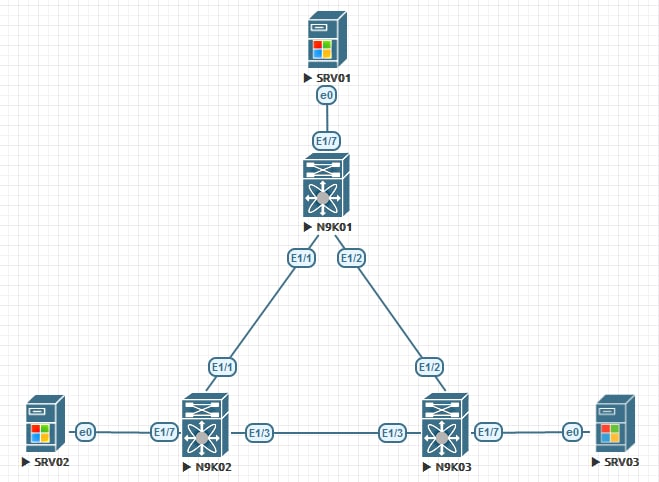

N9K01, N9K02, and N9K03 connect together in a triangle topology:
N9K01(config)# configure terminal N9K01(config)# spanning-tree mst configuration N9K01(config-mst)# ! Upon issuing the commands below, it does not have any N9K01(config-mst)# !configuration change or any impact on the production. N9K01(config-mst)# !unless you exit from this configuration subcommands. N9K01(config-mst)# name SMENODE-DC01 N9K01(config-mst)# revision 1 N9K01(config-mst)# instance 1 vlan 100,200 N9K01(config-mst)# instance 2 vlan 300,400 N9K01(config-mst)# ! Make sure you review the configuration then exit to save the N9K01(config-mst)# !configuration. The production won't be impacted if you N9K01(config-mst)# !haven't stilled change the spanning-tree mode to MST N9K01(config-mst)# show Pending MST Configuration Name [SMENODE-DC01] Revision 1 Instances configured 3 Instance Vlans mapped -------- --------------------------------------------------------------------- 0 1-99,101-199,201-299,301-399,401-4094 1 100,200 2 300,400 N9K01(config-mst)# ! Note that if you don't map a VLAN to an instance, it goes N9K01(config-mst)# !under IST N9K01(config-mst)# exit N9K01(config)# spanning-tree mode mst
Verification
Let us check if the configuration on all switches are the same. I am going to show you the configuration on N9K01 and N9K03.
N9K01(config)# show spanning-tree mst configuration digest Name [SMENODE-DC01] Revision 1 Instances configured 1 Digest 0x8b5d98ca042bad0d7fa5f18744f4755d Pre-std Digest 0x73a6b19dfef58d4d5957bd6ff44a4515
N9K03(config)# show spanning-tree mst configuration digest Name [SMENODE-DC01] Revision 1 Instances configured 1 Digest 0x8b5d98ca042bad0d7fa5f18744f4755d Pre-std Digest 0x73a6b19dfef58d4d5957bd6ff44a4515
As you can see the MST digest for both switches are identical. Hence, we can say that they are in the same region. Now, let us verify the topology:
N9K01# show spanning-tree MST0000 Spanning tree enabled protocol mstp Root ID Priority 32768 Address 5001.0000.1b08 This bridge is the root Hello Time 2 sec Max Age 20 sec Forward Delay 15 sec Bridge ID Priority 32768 (priority 32768 sys-id-ext 0) Address 5001.0000.1b08 Hello Time 2 sec Max Age 20 sec Forward Delay 15 sec Interface Role Sts Cost Prio.Nbr Type ---------------- ---- --- --------- -------- -------------------------------- Eth1/1 Desg FWD 20000 128.1 P2p Eth1/2 Desg FWD 20000 128.2 P2p Eth1/3 Desg FWD 20000 128.3 P2p Eth1/4 Desg FWD 20000 128.4 P2p Eth1/5 Desg FWD 20000 128.5 P2p MST0001 Spanning tree enabled protocol mstp Root ID Priority 32769 Address 5001.0000.1b08 This bridge is the root Hello Time 2 sec Max Age 20 sec Forward Delay 15 sec Bridge ID Priority 32769 (priority 32768 sys-id-ext 1) Address 5001.0000.1b08 Hello Time 2 sec Max Age 20 sec Forward Delay 15 sec Interface Role Sts Cost Prio.Nbr Type ---------------- ---- --- --------- -------- -------------------------------- Eth1/1 Desg FWD 20000 128.1 P2p Eth1/2 Desg FWD 20000 128.2 P2p Eth1/3 Desg FWD 20000 128.3 P2p MST0002 Spanning tree enabled protocol mstp Root ID Priority 32770 Address 5001.0000.1b08 This bridge is the root Hello Time 2 sec Max Age 20 sec Forward Delay 15 sec Bridge ID Priority 32770 (priority 32768 sys-id-ext 2) Address 5001.0000.1b08 Hello Time 2 sec Max Age 20 sec Forward Delay 15 sec Interface Role Sts Cost Prio.Nbr Type ---------------- ---- --- --------- -------- -------------------------------- Eth1/1 Desg FWD 20000 128.1 P2p Eth1/2 Desg FWD 20000 128.2 P2p Eth1/3 Desg FWD 20000 128.3 P2p
